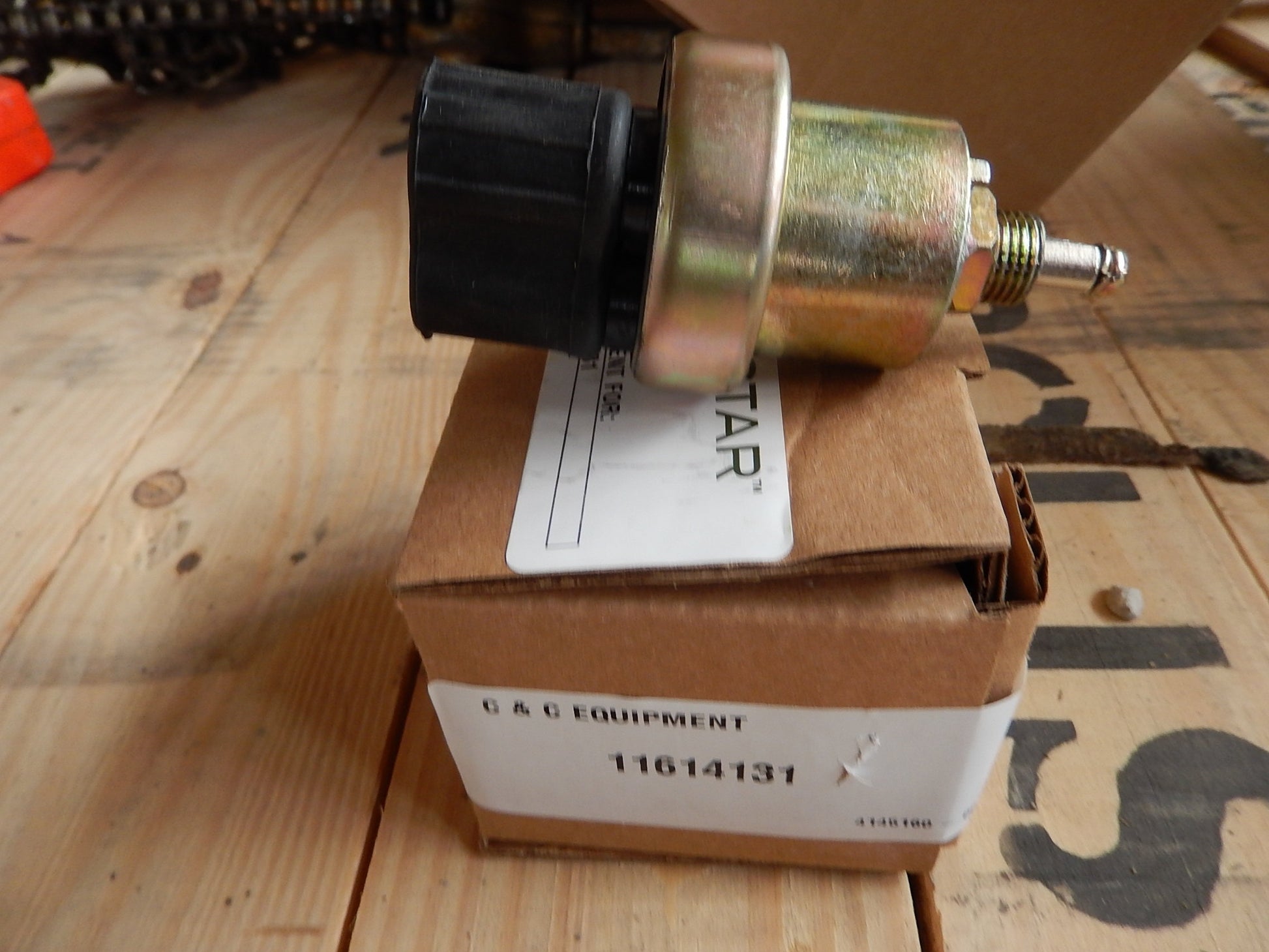

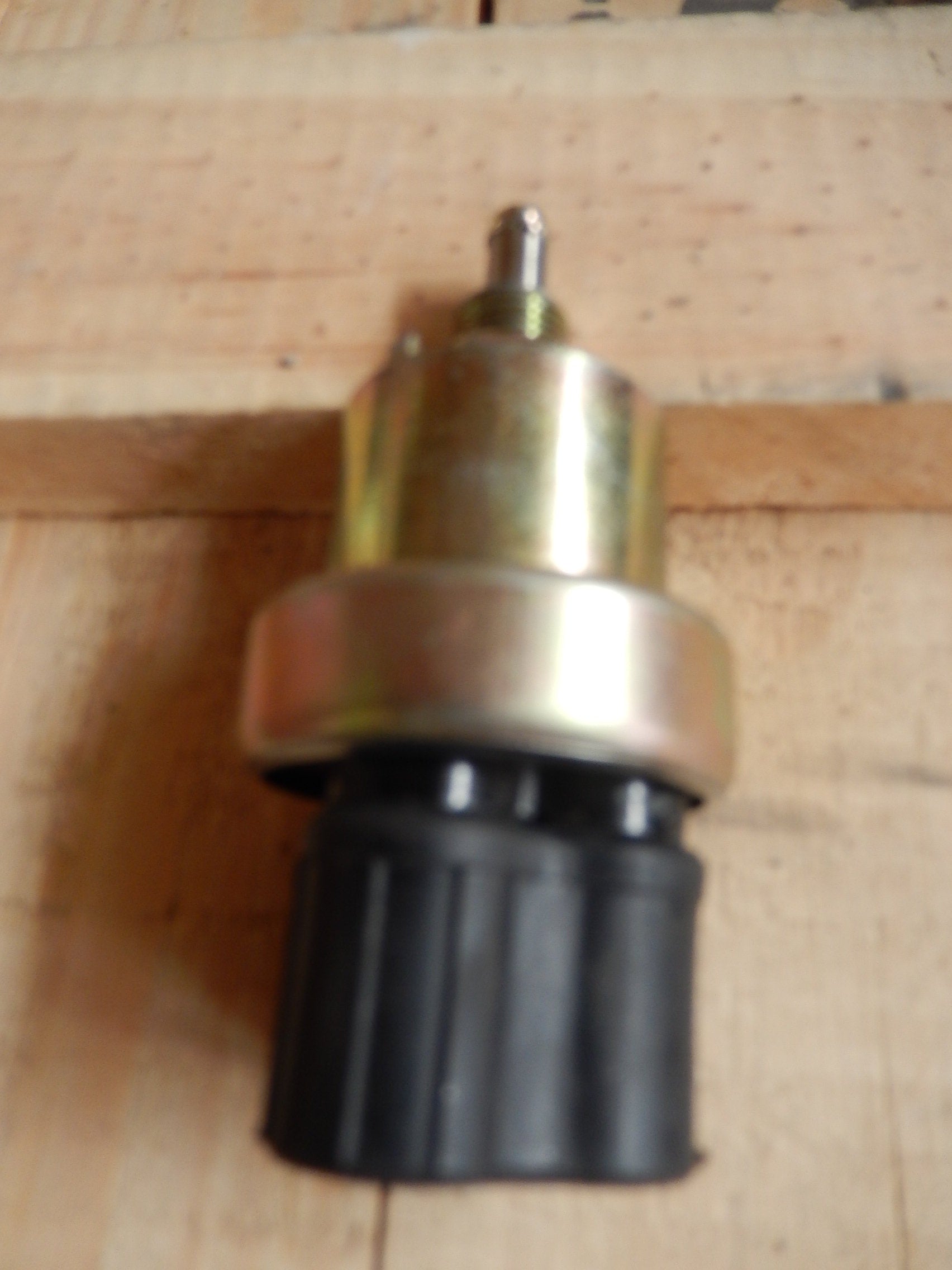

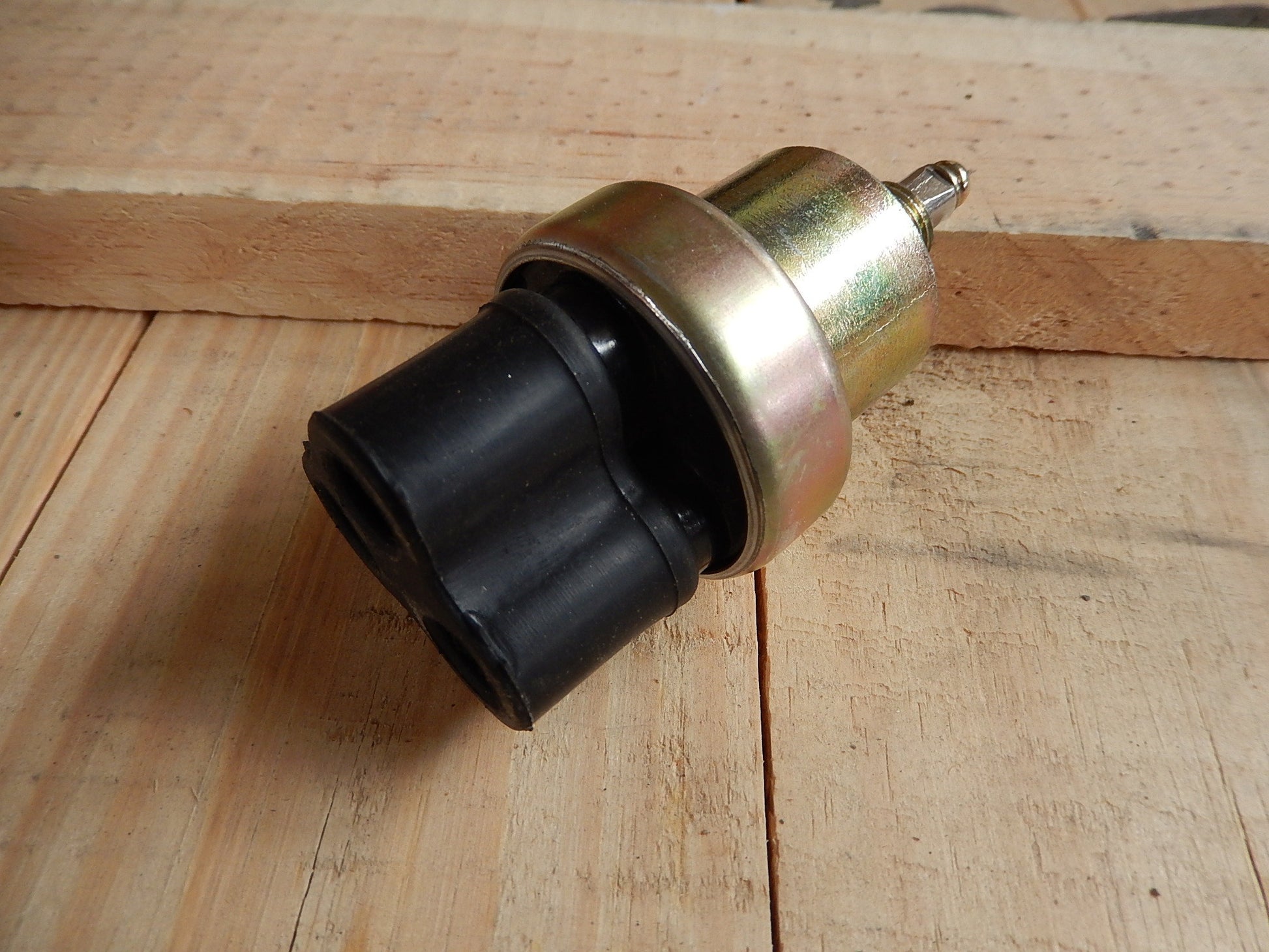

Ignition/start switch "Off-On-On Momentary” (SP3T). Switch is found on the M939, M809, and HMMWV, etc. Generally used as an ignition/start switch, or pre-heat control.
P/N 11614131, also replaces alternate part numbers 4998, 5400, 12506826. NSN 5930001345036. Made in USA.
Rated 30 Volts DC, position #2 is 20 Amps max continuous, position #3 is 20 Amps with 75 Amp inductive load surge for start circuit.
